MULTI-STAGE EQUIPMENT SERVICES

MULTI-STAGE EQUIPMENT

Tier 1 is among a select few service companies that have fully commercialized products and experienced personnel to perform all primary techniques of multi-stage completions, including: pump-down plug and perforate, ball-drop, coil-shift annular frac, coil-shift coil frac, and straddle frac.

Options to install these technologies include: open-hole deployment, cemented or partially cemented systems and either as a liner or monobore. Although our current product offering exceeds many of today’s requirements, we continue to push technological and operational advancements to facilitate additional stages, longer laterals, time savings, safety improvements and reduce displacement volumes required.

Exceeding expectations.

FULL MULTI-STAGE EQUIPMENT SERVICES

The competitive advantage that the Tier 1 ball-actuated valve offers is the ability to provide more stage counts, less taper between seat IDs, and a higher pressure rating of the ball on seat.

This is a result of extensive testing, carefully selecting the most advanced materials and incorporating unique design features. In addition, opening shear values tolerances are tightly controlled for reliable and consistent surface pressure signatures.

DOWNLOAD BALL-ACTIVATED VALVES INFO SHEETS

Ported Valve
DOWNLOAD
Locking Trip Sub
DOWNLOAD
Dissolvable Ball
DOWNLOAD

Tier 1 is partnered with Advanced Completions Technology Services to provide the highest level of field experience along with the latest advances in coil-actuated valves and associated shifting assemblies.

The Vantage Pro™ system allows for either stimulating down the annulus of the coil or down the coil itself. Field-proven designs combined with advances in elastomeric technology ensure successful repeatability and endurance of equipment during the treatment of high stage count wells. These valves are designed to be cemented in place or installed in an open-hole assembly, along with annular packers.

DOWNLOAD COIL ACTUATED VALVE INFO SHEETS

Multistage Fracturing System
DOWNLOAD

Tier 1’s full power is evident when using combined products and services from the completions and wireline product lines.

We were at the forefront in bringing Smooth cable to market, and through engineering advancements and operational experience, we have nearly perfected the pump-down process.

Operators can combine this industry-leading wireline and perforating technology with the most advanced frac plug technology, NEO dissolvable HP plug, from our completions portfolio. We offer these products and services as stand-alone or in combination with our other product offerings.

Download Pump-Down Plug and Perforate Spec Sheets

KX Neo Dissolvable Frac Plug
DOWNLOAD

Rigorous testing at elevated temperatures is essential to provide the industry with a reliable packer suited for the multi-stage market.

Tier 1 offers qualified and field-proven liner top packers, casing annular packers and isolation packers for inside casing. The experience-driven engineered solutions incorporated into the design of these packers ensure that installation risk is minimized and performance reliability is maximized.

DOWNLOAD ISOLATION PACKERS INFO SHEETS

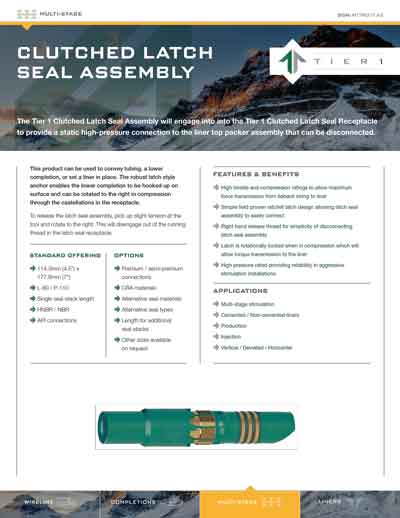

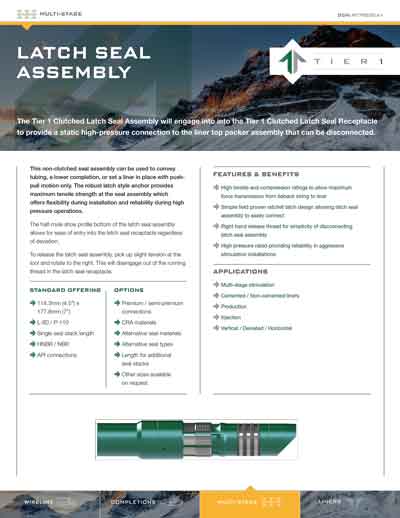

Latch Seal Assembly
DOWNLOAD
Latch Seal Receptacle
DOWNLOAD
Liner Top Packer
DOWNLOAD
Locator Seal Assembly
DOWNLOAD
Open Hole Packer
DOWNLOAD
Tieback Receptacle
DOWNLOAD
Tri-Jay Seal Assembly
DOWNLOAD
Tri-Jay Tieback Receptacle
DOWNLOAD

Tier 1 delivers quality toe equipment tested to down-hole environments and field proven for trusted reliability.

As we continue to increase lateral lengths in our well-bore designs, the importance of reliable equipment required to function at the toe becomes paramount. Effective and fully competent isolation, with reliable and consistent hydraulic activation are keys to eliminate unnecessary expenses or loss of reservoir access.

DOWNLOAD TOE EQUIPMENT INFO SHEETS

Atmospheric-Chambered Toe Valve
DOWNLOAD
Differential Pressure Toe Valve
DOWNLOAD

Installation techniques and well designs for multi-stage installations can vary significantly.

We offer an assortment of accessories that provide options for where to place cement during installation or testing casing when stimulation activities have been completed. Other Tier 1 accessories are capable of strengthening the structure of the casing string or centralizing the string within the wellbore. We offer custom engineered solutions for specific requirements.

DOWNLOAD ACCESSORIES INFO SHEETS

Debris Barrier Sub
DOWNLOAD
HP Hydraulic Stage Collar
DOWNLOAD
Open Hole Anchor
DOWNLOAD
Post-Stimulation Test Sub
DOWNLOAD
