WIRELINE SERVICES

WIRELINE

Our commitment to service quality is the driving force behind what we do. We have wireline operations in Grande Prairie, Leduc, Lloydminster and Bonnyville. From there, we can mobilize the required equipment and personnel anywhere in the Western Canadian Sedimentary Basin.

We maintain a robust non-compliance reporting (NCR) program with regular meetings between our operations, engineering and management teams to diagnose any failure, develop corrective actions and relay the information to our field team. We continually look for new technologies and processes to achieve our mission of being the number one provider of cased-hole wireline services in Canada, with world-class service quality and efficiency.

Exceeding expectations.

FULL WIRELINE SERVICES

One of the biggest challenges facing Canadian operators is identifying the source and mitigating surface casing vent flows and/or gas migrations.

Millions of dollars are spent each year in unsuccessful attempts to locate and eliminate gas venting or migrating to surface. The complicated nature of the problem makes it difficult to determine why the attempt failed: whether the source was not properly identified, or the mitigation was unsuccessful, or both.

Tier 1’s approach is to give customers access to a comprehensive toolbox of services and expertise critical to tackling this problem. We offer customers the best chance to identify and eliminate gas sources on the first attempt using a variety of technologies, including:

IDENTIFICATION FEATURES:

  • State of the art Hifi HDS Micro™ Fiber Optic Noise tool
  • The Cased Hole Analysis Tool (CHAT)
  • Traditional Noise/Temp logging

MITIGATION FEATURES:

  • DynaEnergetics Slot Gun System
  • SealWell Bismuth Tin Metallic Plugs

DOWNLOAD SURFACE CASING VENT FLOW/GAS MIGRATION AND ABANDONMENT SERVICES INFO SHEETS

Cased Hole Analysis Tool
DOWNLOAD
Hihi HDS Micro
DOWNLOAD
Reservoir Performance Monitor
DOWNLOAD

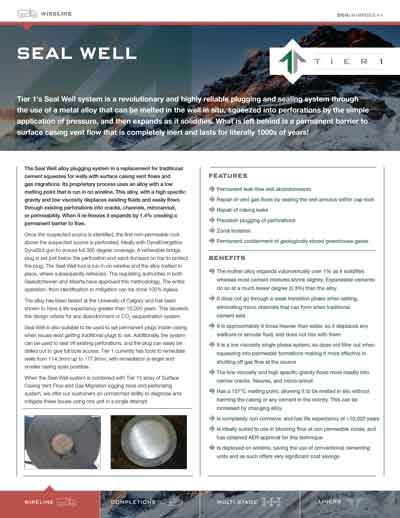

Seal Well
DOWNLOAD

Whether it’s a deep toe shoot in the Montney or at hundreds of metres in the Viking, Tier 1 has the tubing conveyed perforating (TCP) products and the experienced supervisors necessary to deploy them.

Our operations ineduc, Grande Prairie, Bonnyville and Lloydminster allow us to cover the Western Canadian Basin. We can design a job to meet any client’s TCP needs through a wide range of firing head options, specially designed pressure-activated to use with plug setting tools, and the equipment to run multi-stage jobs off eCoil.

Our services makes us the clear leader in well integrity logging in Canada—from injector conversions to integrity checks in ageing heavy oil wells, we have our clients covered.

Through our relationship with Baker Hughes, we are the exclusive provider of the Vertilog family of tools, the premiere well integrity tool on the market. This relationship also allows us to provide the Canadian market with Baker Hughes’ pad-type Segmented Bond tool and 60-arm caliper tool. We also supply traditional radial bond tools, caliper tools and multi-pipe thickness tools.

DOWNLOAD WELL INTEGRITY INFO SHEETS

HRVRT High-Resolution Vertilog Service
DOWNLOAD
Segmented Bond Tool Well Integrity Evaluation Service
DOWNLOAD

Whatever the job, we have the right tools with the right people to run it—from a bridge plug set and a cement dump bailer to a collar locator-gamma ray log and a perforating gun.

We have a full selection of standard mechanical tools run by experienced crews in our locations throughout Western Canada. We have access to any gun system available in Canada through our partnerships with various perforating suppliers. For rigless jobs, we have mast units available to eliminate the need for a crane.

TriStim Perforating System
DOWNLOAD

In pump-down perforating operations, efficiency is the key to success. Our experienced wellsite teams, management and engineering staff continuously evaluate our wellsite procedures and processes in close coordination with our clients ensure efficiencies are always achieved.

To achieve these efficiencies, we have introduced our Smooth cable to the Canadian market, eliminating the need for grease injection and allow for a step change in running speeds. In addition, our technologically advanced Ballistic Release tool almost completely eliminates downhole failures with conventional release tools.

DOWNLOAD PUMP-DOWN PERFORATING OPERATIONS INFO SHEETS

Ballistic Release Tool
DOWNLOAD

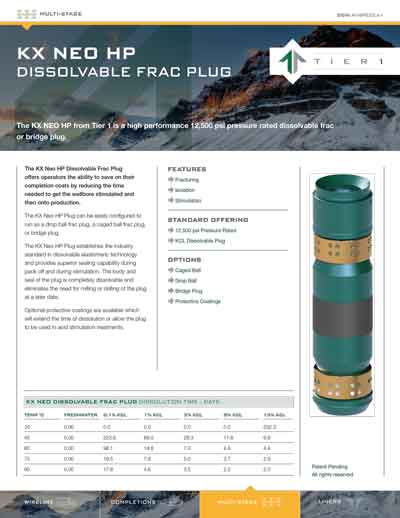

KX Neo Dissolvable Frac Plug
DOWNLOAD
Flex Joint
DOWNLOAD
Pumpdown Perforating
DOWNLOAD
Riglock
DOWNLOAD
Ballistic Release Tool
DOWNLOAD

As the industry has moved to horizontal wells almost exclusively, the rig time required for most reservoir analysis by open-hole too cost prohibitive.

Many of the measurements that were exclusively open-hole can now be made in cased-hole. Tier 1 has sonic, neutron, and density porosity tools for cased-hole, in addition to a sigma measurement as a pseudo-resistivity tool. We can also determine mineralogy using pulsed neutron technology. Logging cased-hole eliminates drilling rig downtime and can be performed with no rig at all. Measurements can be made in the horizontal, either with tractor, coiled tubing, or pumping down; most can be run on memory. To achieve even greater savings, measurements can be logged in batches before any completions operations. We can show customers how to high grade their reservoirs and perforate the most productive areas while avoiding perforating and fracture stimulating non-productive zones.

We are the exclusive provider of Baker’s Reservoir Production Monitor (RPM) tool that can be used to perform MIT (mechanical integrity tests) and track gas placement in cavern storage wells.

DOWNLOAD RESERVOIR ANALYSIS, MIT AND CAVERN LOGGING INFO SHEETS

Cased Hole Analysis Tool
DOWNLOAD
Gasview Service
DOWNLOAD
Reservoir Performance Monitor
DOWNLOAD

The depth and flexibility of our offerings, combined with our experienced team make Tier 1 the leading choice for any pipe recovery needs.

We are the only service company capable of delivering pipe recovery and cased-hole services off the same unit, providing flexibility when you need it. We can supply pipe cutting services to 15,000 psi, a full range of chemical cutters, speciality and motorized free point tools as well as side entry equipment for top drive operations. We are also the exclusive provider of the Baker Hughes Mechanical Pipe Cutter tool in Canada.

DOWNLOAD PIPE RECOVERY INFO SHEETS

Mechanical Pipe Cutter Tool
DOWNLOAD
